By
BlakDogg,
in LED Lighting
-
Similar Content
-
By PhlizonGrowLight
Hi, everyoneďźWe are Phlizon manufacturer, engaged in indoor grow equipment: LED GROW LIGHT and other Grow Kits. Phlizon brings quality, affordable and reliable grow lights for growers!
We, here at Philzon, Ltd have been manufacturing the highest quality LED Full Spectrum Plant Grow Lights since 2017.
We provide factory pricing directly to consumers and assure that our customers receive affordable, high quality and reliable lighting systems they deserve.
We own and operate our own production facility utilizing the latest and most up to date OEM/ODM capabilities and quality control systems.
We have Global warehouse - Located in USA, Canada, UK, Europe, Thailand worldwide shipping available.
Our professional team includes our own R&D facility, production facility, inside sales department and after service and customer service department. Try our products and order, knowing we stand behind our products 100%.
Phlizon LED Grow Lights:
Factory direct sales, no middlemen to earn the difference
3-7 Business Days Free Shipping from Local warehouse
3 Year Warranty
30-day Free Return and Refund
PS: Apply the code PH420 when checkout you could get 8% OFF!
Phlizon US store:Â https://www.phlizonstore.com/ Phlizon UK store:Â https://www.phlizon.co.uk Phlizon EU store:Â https://www.phlizon.eu Phlizon AU store:Â https://www.phlizon-au.com
Thank you for all the support to Phlizon! If you have any questions you can email us at support@phlizonstore.com!!!
Glad to join 420SAÂ and meet you all here. Welcome to express your opinions about our products or growing freely.
Letâs learn and grow together!
-
By Georgi
12 x 240W LED Grow lights, as new, for sale.
6 are with wooden frame and 6 are with aluminum frame.
Wooden frame is more expensive but if you buy the lot then price will be the same for all.
-
By Georgi
12 x 240W LED Grow lights, as new, for sale.
6 are with wooden frame and 6 are with aluminum frame.
Wooden frame is more expensive but if you buy the lot then price will be the same for all.
-
By High_grade.420

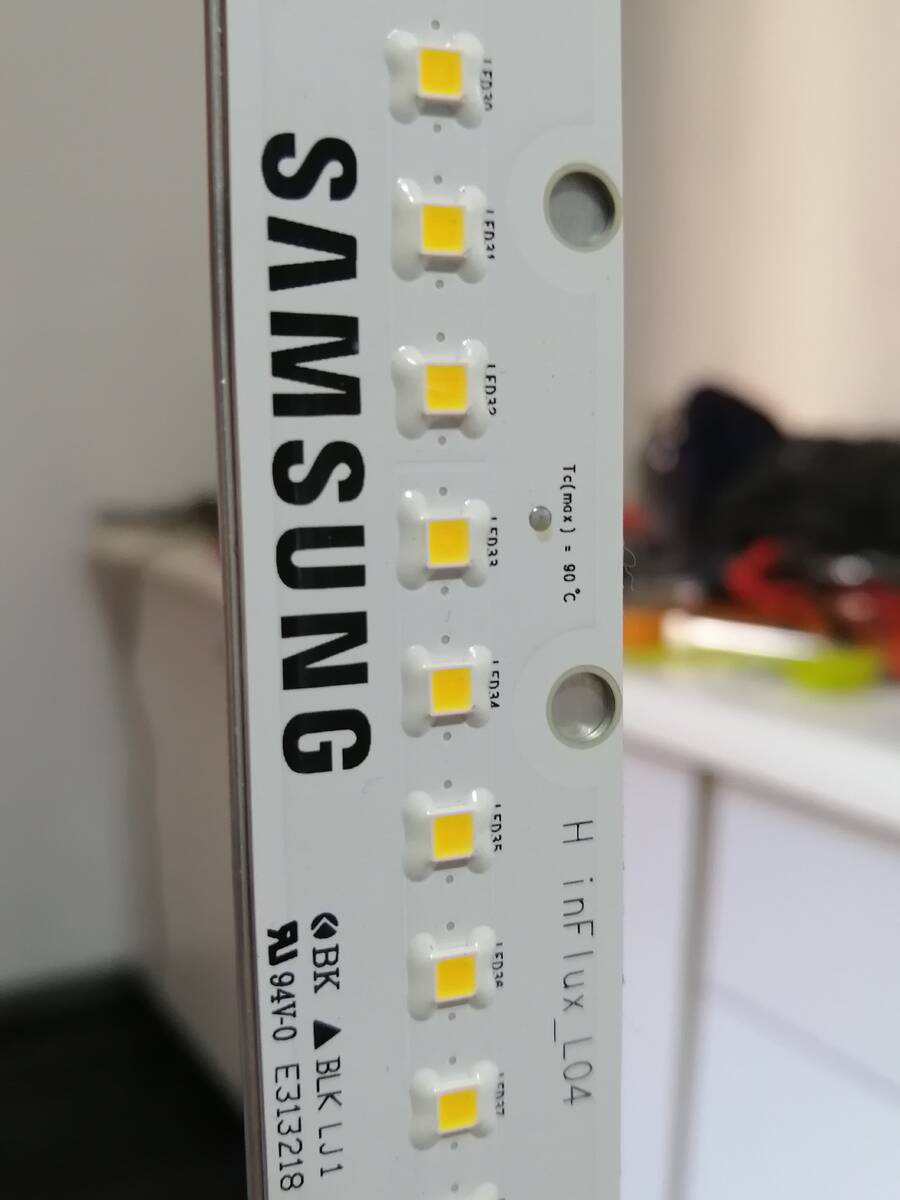

150w Grow The Jungle LED Grow Light , The Light is full Spectrum. Samsung LEDs and Osram Driver , They're hands down one of the best lights iv used out of the many that I have used over the years,
Lights Aren't available to order in the country , Imported from spain ,
more than 1 available , price is Negotiable.
Â
If you want to know more feel free to Dm meÂ
-
By Johnsmithled

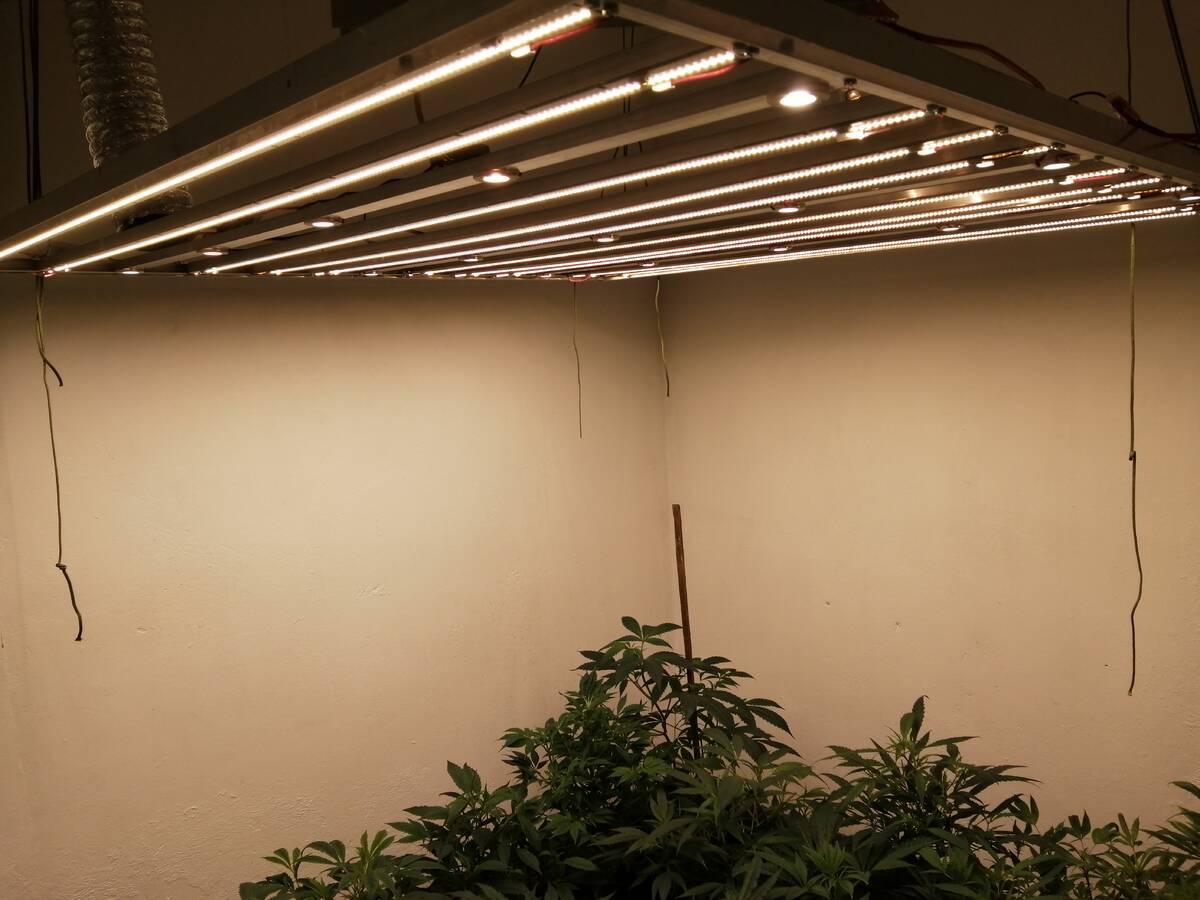

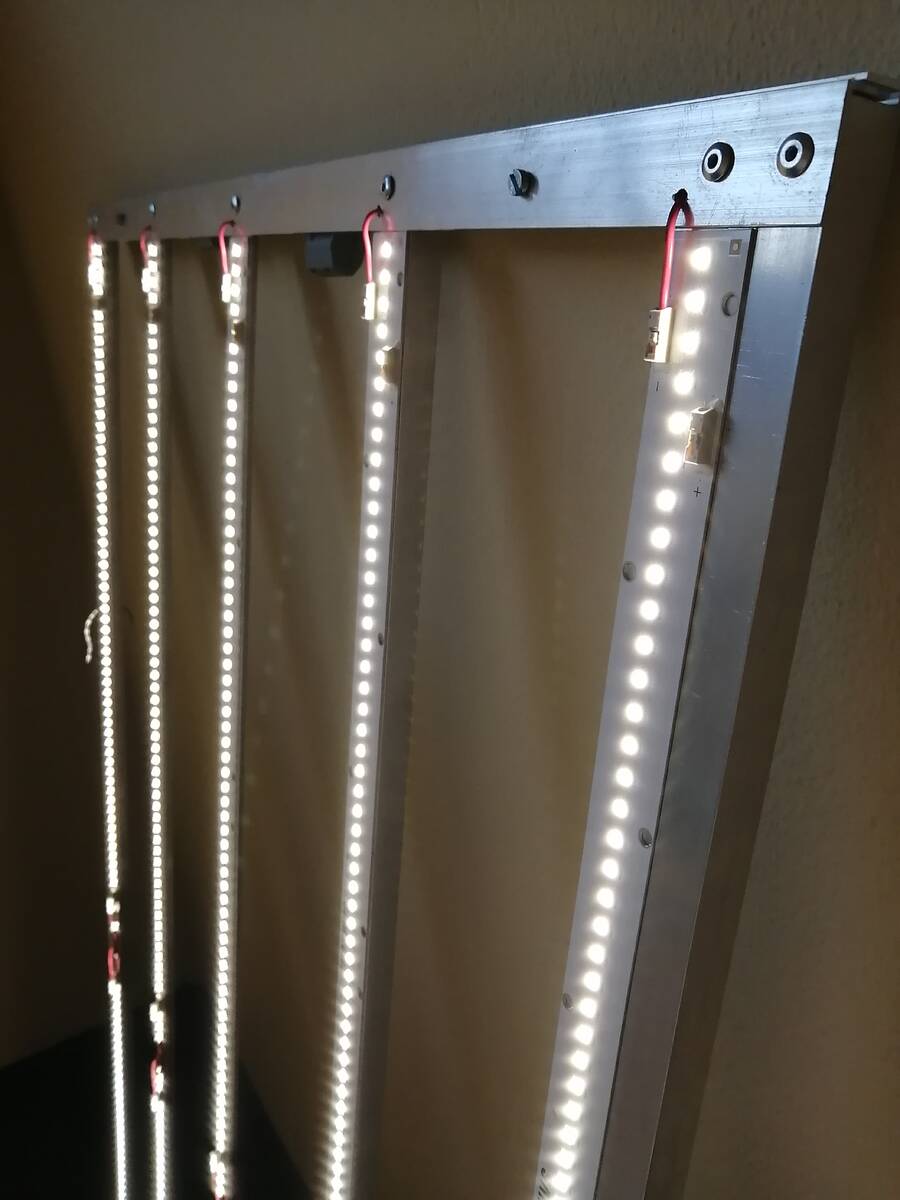

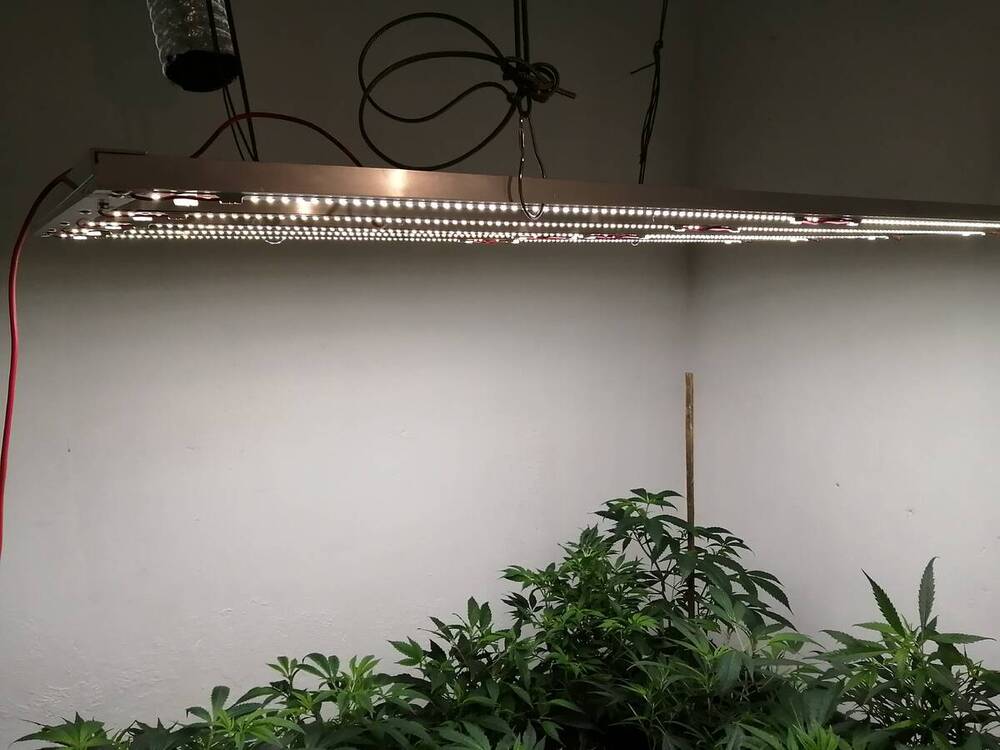

This is how I built an overpowered light worth $2500+ on the market for only $850. All currency is CAD.
*BEFORE STARTING*
Watch the 6 part growmau5 series to learn the wiring:
Â
For the grounding plug:
Â
Technical:
4x Hlg 185H 700ma in series drivers (i suggest you buy the newer 240H model) $250
40x 5000K $350
7x 3000K $25
(You can use less I used way too many)
All are bridgelux Gen 3/ C3 (Make sure theyre all plug in only dont mess around with the solder ones unless you have 100+hours experience in soldering)
The 3000k ones I used were soulder onlys. Lost a couple due to human error
Total Cost (TC): $575
Frame:
(Choose a better material for frame, I used wood composite because I was lazy) (I would think aluminum would be the best material but all have their pros and cons)
Wood composite 2x2ft v
Matching plastic 2x2ft (painting frame) $50?
Thermal tape (sized to the width of the led bars) $20
TC: $70-100
Electric:
100â length 20guage solid core wire $60
50 pack 2 wire wagos 221 $25
4x plastic junction boxes 4inch x 4inch x 3inch (make sure it comes with something to plug up the holes and hold the wire)$40
500 assorted pack heatshrink tubing $20 (good to help fit in junction box)
4x Leviton 515PV 15Amp 125Volt grounding plug $20
25â 16guage wire (for the grounding plug) $20
TC:$165-Everything is super flexible here just make sure your amps and volt calculations are solid.
-Dedicated extra fans (required): With 2 medium fans running on the light, and another 2 small fans running on the drivers everything is 20C-25C.
SETTING UP THE DIMMERS
(Very easy if you do it like i did in these pictures)
All you need is:
â˘100k potentiometers (maybe an ohm meter if you want to make sure ur dimmers go all the way to 100, most dont they go to like 92 or 97)
â˘20 guage wire (same as the led strips)
â˘Plastic junction box (make sure its got rubber wire holders that you cut a hole through with scissors and put the wire/ potentiometer through)
â˘211 Wago wire connector
â˘soldering machine (temperature is dependant on what kind of solder you use) $25
⢠silver solder (find a lower temp soldering machine ~360f for silver) $20
(This light is truly 800w if you use the exact parts, if you use more or less drivers and led strips or different brands then the wattage can vary from 600-1000, materials are very flexible just try to make sure volt/amp calculations are correct) (Always be cautious with electricity, build this whole thing without being plugged in to any wall outlet/power sourceâ ď¸âĄď¸)
-
